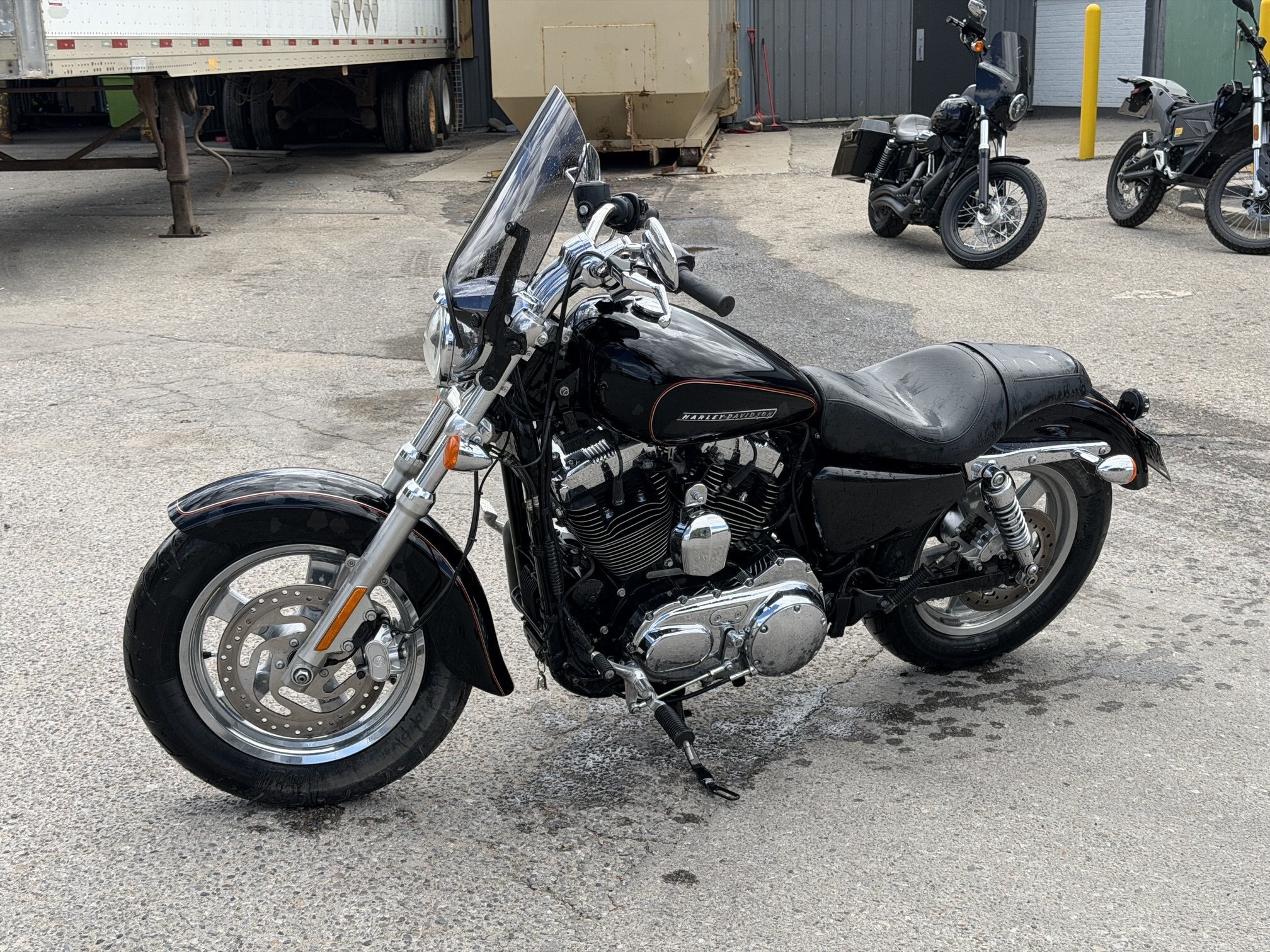

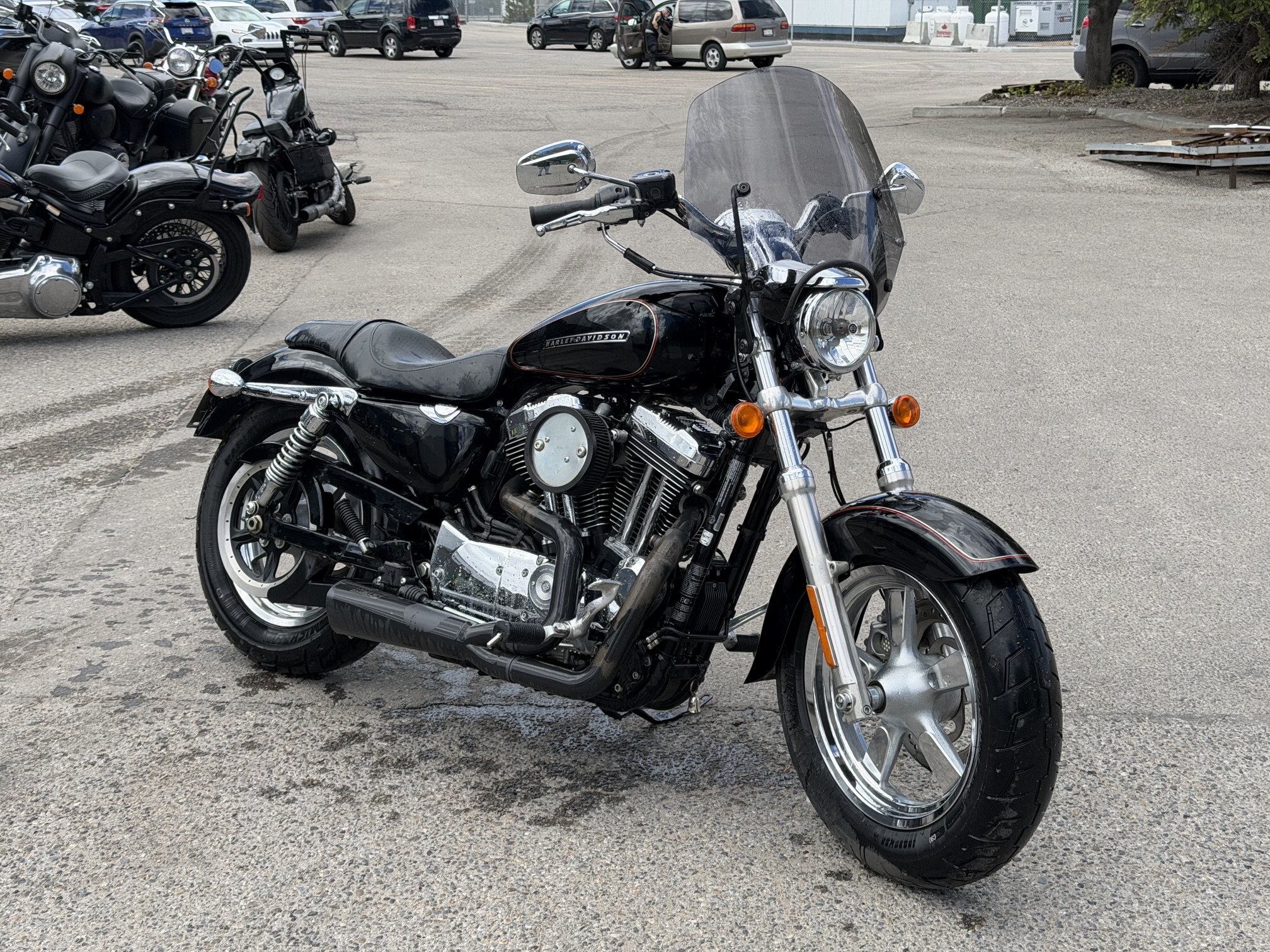

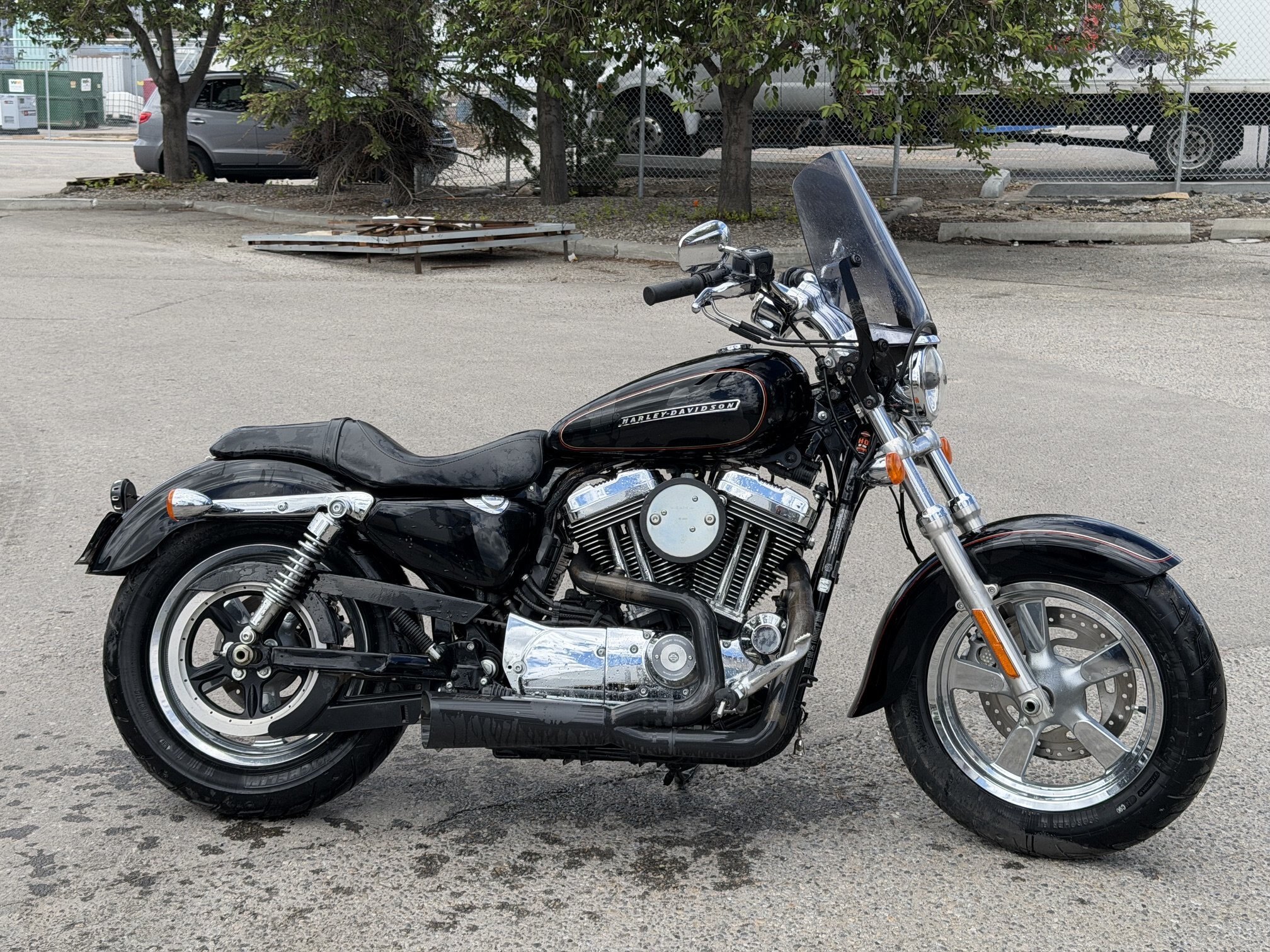

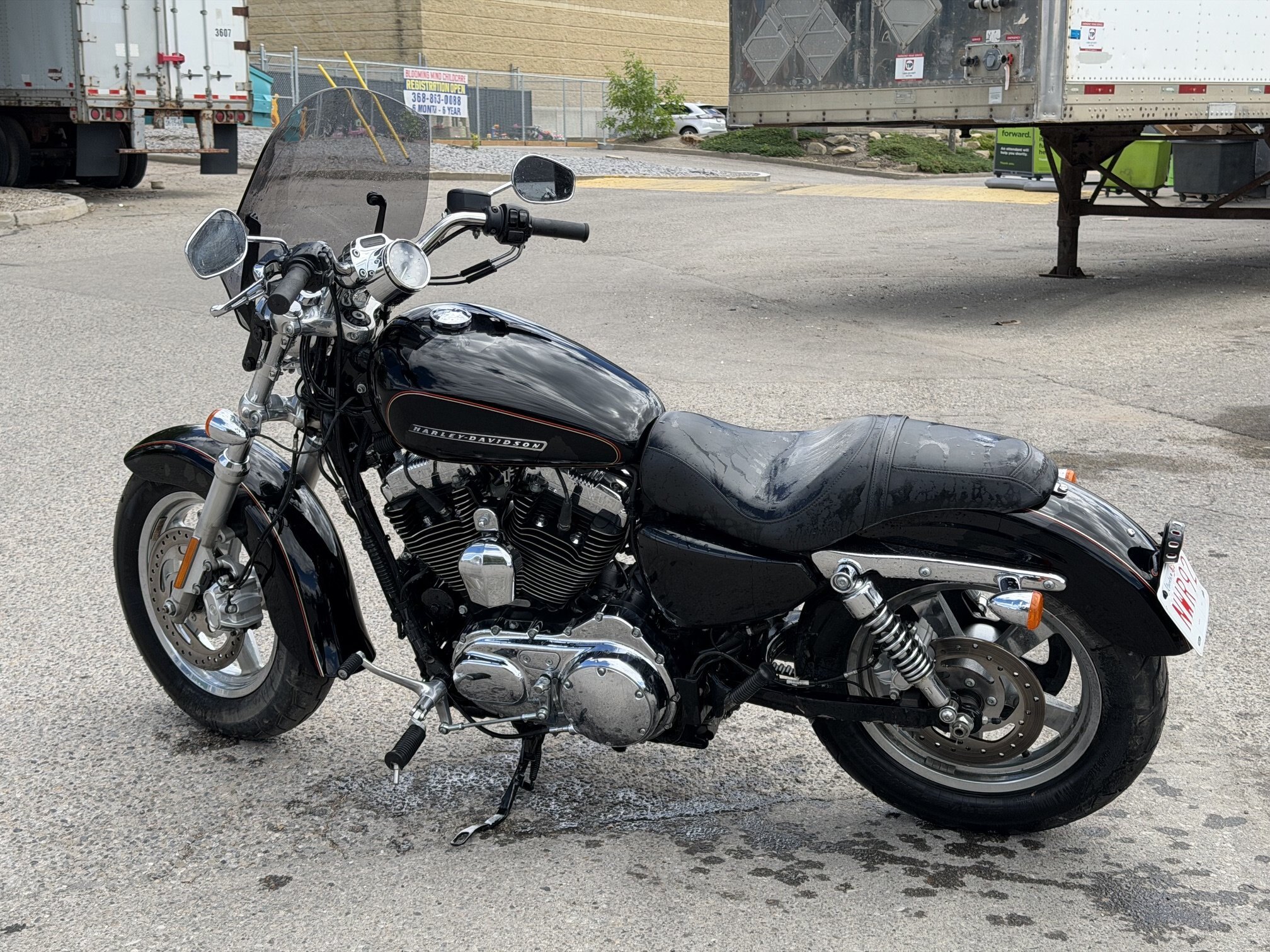

2015 Harley Davidson XL1200

The 2015 Harley-Davidson Sportster XL1200 Custom features a rubber-mounted, air-cooled 1202 cc Evolution V-Twin engine paired with a 5-speed transmission. It produces 71 ft-lb of torque, has a 17-liter (4.5 US gallon) fuel tank, and achieves approximately 48 mpg combined fuel economy.

The 1200 Custom (XL1200C) specs include:

Engine & Drivetrain

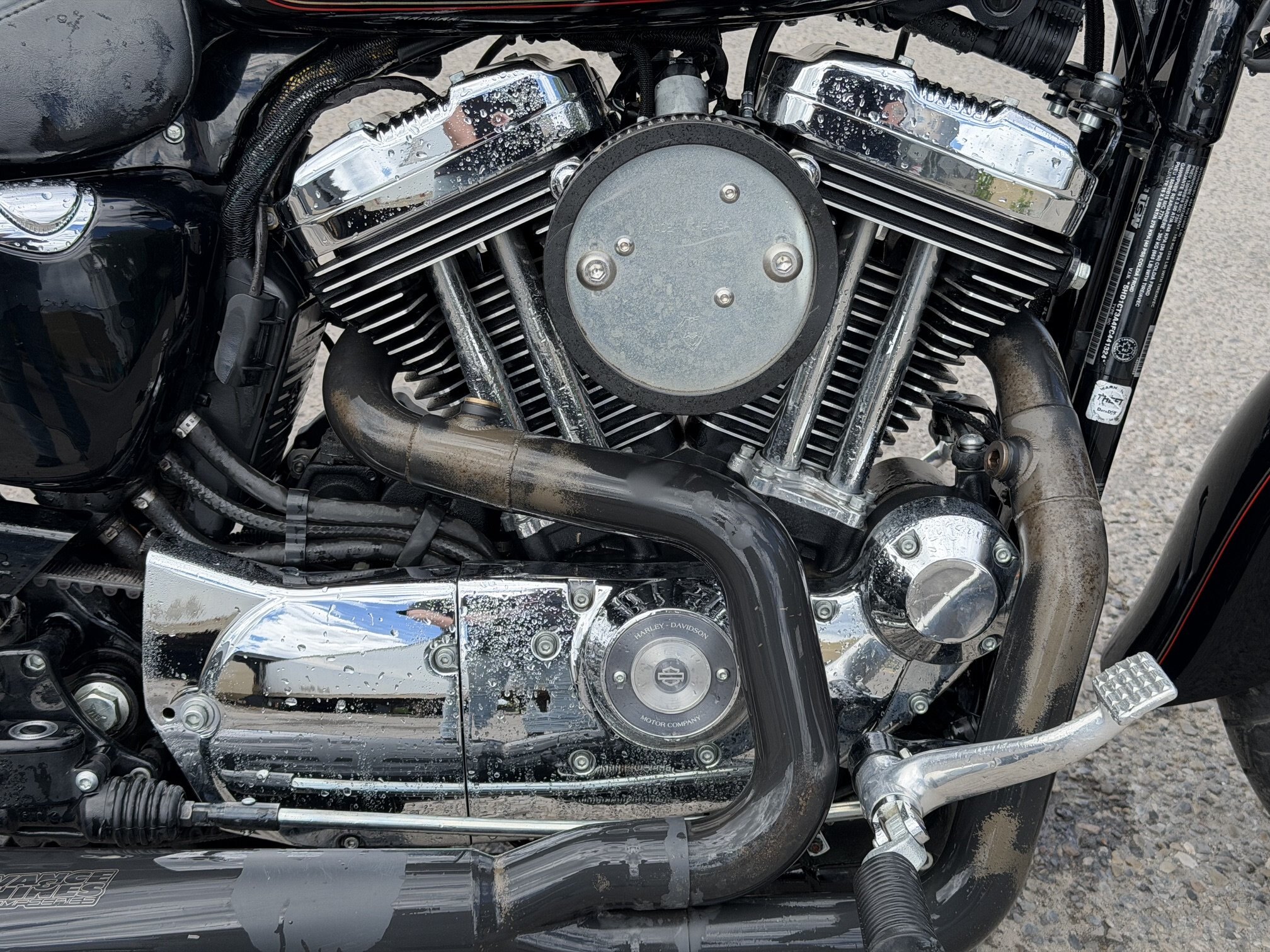

• Engine Type: Air-cooled, Evolution V-Twin, OHV, 2 valves per cylinder
• Displacement: 1202 cc (73.4 cu. in.)
• Bore x Stroke: 88.9 × 96.8 mm
• Compression Ratio: 10.0:1
• Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)
• Torque: 70.8 ft-lb @ 3,500 rpm
• Primary Drive: Chain, 38/57 ratio
• Final Drive: Belt

Dimension

• Overall Length: 2,225 mm (87.6 in.)
• Wheelbase: 1,519 mm (59.8 in.)
• Seat Height (Laden): 676 mm (26.6 in.)
• Ground Clearance: 109 mm (4.3 in.)
• Fuel Capacity: 17 liters (4.5 gal)
• Weight (Running Order): 265 kg (584 lb.)

Chassis, Wheels & Brakes

• Frame: Mild steel, tubular frame
• Front Suspension: Telescopic fork
• Rear Suspension: Coil-over, dual shocks (preload adjustable)
• Front Wheel: Chrome, 5-spoke cast aluminum (130/90B16 tire)
• Rear Wheel: Chrome, 5-spoke cast aluminum (150/80B16 tire)
• Front Brakes: Dual-piston caliper, 300 mm disc
• Rear Brakes: Dual-piston caliper, 300 mm disc
